TruFit® Stainless Steel Pipe Fittings and Weld Fittings
TruFit stainless steel pipe fittings are available with NPT, SAE thread, and BSP thread end connections in 316 stainless steel, Alloy 400 and brass. TruFit adapters include tube socket weld, pipe socket weld, butt weld and AN flare fittings and adapters.
TruFit® pipe fittings, weld fittings, and adapter fittings are designed and manufactured to provide reliable connections in instrumentation and process piping systems. 316 SS, brass, C-276 and Alloy 400 and stainless steel pipe fittings are standard. Other alloys are available on request. TruFit pipe, weld, and adapter fittings are functionally interchangeable with Swagelok®, Cajon®, Parker®, and Hoke® instrumentation fittings.
Specification
- MAWP
- NPT Thread: Up to 11,000
- SAE Thread: Up to 6000
- Weld Ends: Up to 15,000
- Temperature Range:
- NPT/BSPT Thread Fittings
- Stainless Steel: -425 to 1200°F
- Alloy 400: -40 to 400°F
- SAE/BSPP Fittings(O-Ring material)
- NBR: -40 to 250°F
- FKM: -15 to 400°F
- NPT/BSPT Thread Fittings
- Materials: 316 SS, Alloy 400, Alloy C-276 and Brass
- End Connection Sizes:
- NPT Thread /BSPT Thread : 1/16 to 2 in.
- SAE Straight Thread: #4 to #32
- End Connection Types
- Straight, 90° and 45° elbows, tees, nipples, couplings, adapters, mud daubers, BSPP and BSPT thread adapters, AN adapters, NPT thread reducers and more.
Resources
Select TruFit Pipe Fittings for your applications
Download the complete Trufit Pipe Fitting and Weld Fitting Catalog
Stainless Steel Pipe Fittings - TruFit 10K

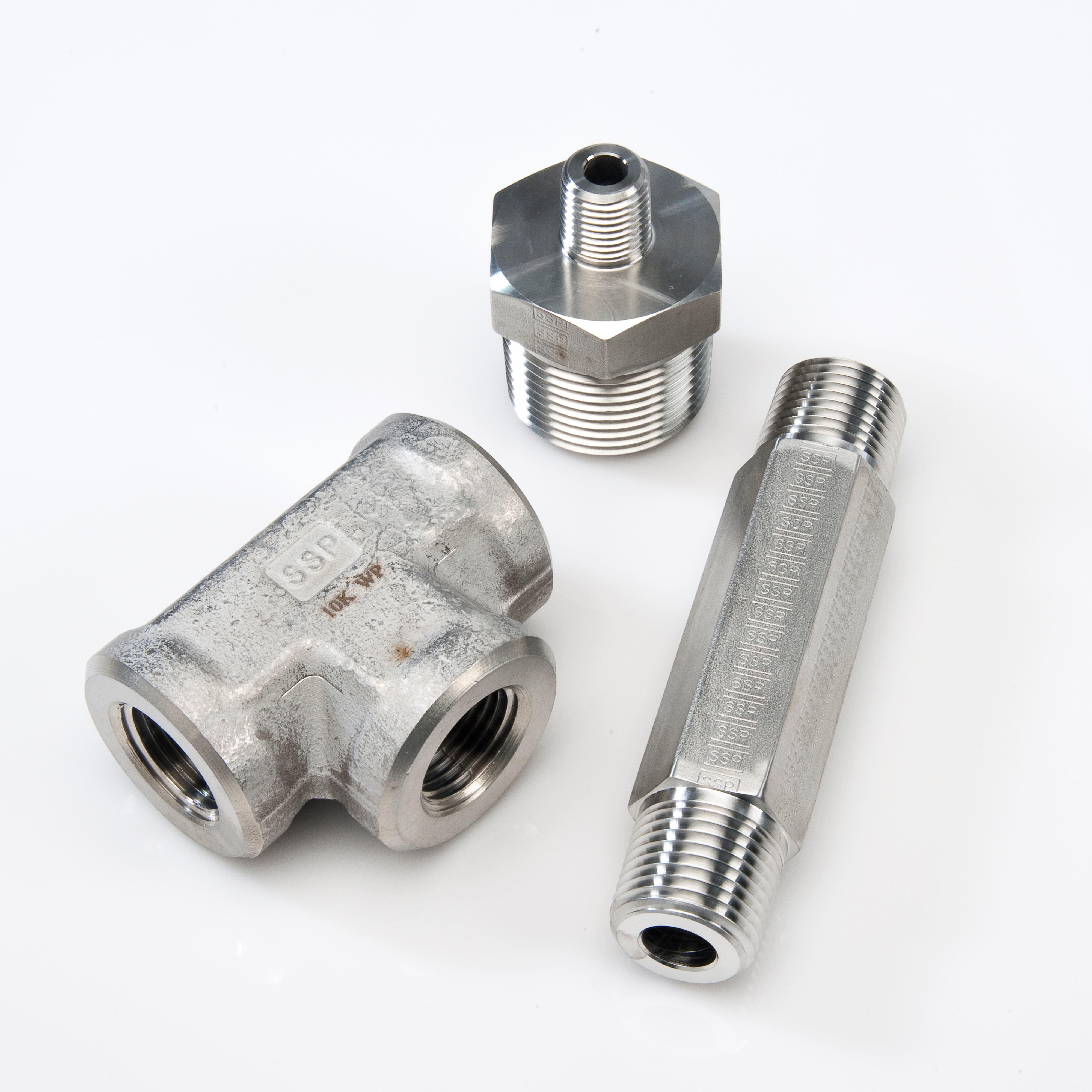

TruFit 10K® Stainless Steel Pipe Fittings and Adapter Fittings
All TruFit 10K pipe fittings are designed to have a minimum pressure rating of 10,000 psig at 100°F (38°C). TruFit 10k fittings are available with a wide variety of NPT, BSP and SAE threaded, tube socket weld and AN flared end connections.
TruFit 10K stainless steel pipe fittings and adapter fittings provide reliable connections in high-pressure systems. All TruFit 10K NPT thread, SAE thread and BSP thread pipe fittings are designed to be used in system pressures up to 10,000 psig at 100°F (38°C). 316 stainless steel fittings are are standard. TruFit 10k fittings are available with a wide variety of AN fittings connects.
Specification
- Working Pressure: 10, 000 psig (minimum for all types and sizes)
- Temperature Range: -425 to 1200°F
- Body Materials: 316 SS, Alloy 400, C-276, Brass.
- Other materials are available.
- End Sizes:
- NPT/BSPT Thread: 1/8 to 1 in.
- SAE/BSPP Thread: 1/4 to 1 in.
- End Connection Types
- 90° and 45° elbows, tees, unions, nipples, couplings, adapters, BSP thread and SAE thread adapters, mud daubers, AN adapters reducers, swivel adapters and more.
